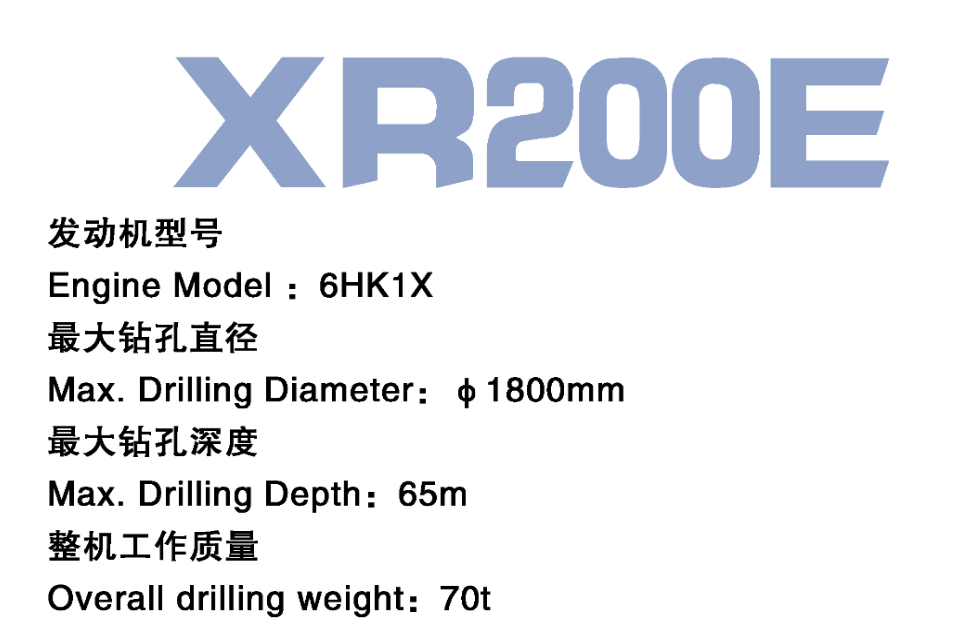

XR200E Rotary drilling rig
XR200E
Quantity
Technical Characteristics
As a multi-functional machine, XR200E can realize the quick switching offunctions such as crowd cylinder, crowd winch, to meet more differentconstruction needs;
It adopts Isuzu electronically controlled turbocharged engine with lower fuelconsumption and convenient service;
The rotary drive performance is increased by 11%, main winch by 18%.travelling drive by 20%, heat dissipation capacity by 1.4 times,and the workingefficiency is much higher;
The main and auxiliary winches both adopt single-row rope technology,theservice life of wire rope is 2~4 times longer than that of multi-layer rope, whichmakes the cost lower;
The parallelogram luffing mechanism with double swing arm has a large supportangle and a 16% increase in support range, which makes the operation morestable;
The hydraulic system adopts negative flow control technology which has a fastresponse and good handling performance;
The intelligent control system can achieve functions such as automatic adjustmentand display of mast perpendicularity, automatic slew, automatic spin-off,automatic lifting & concrete pouring and pile type display, etc, the bus paneldesign is adopted to prevent misoperation;
The rotary drive can be equipped with high-speed spin-off function and therotation speed can reach up to 80r/min,the construction efficiency is higher witha spiral drilling bucket.
